MJS/MJL标准连接器
Slip type couplings are axially non restrained. They allow expansion and contraction of pipes which happen due to environmental factors.
Fall-out may happen because of axial force, so it is recommended to fix pipes on its installation.

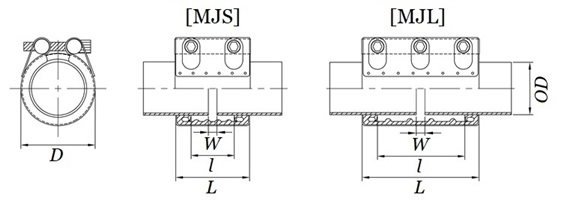

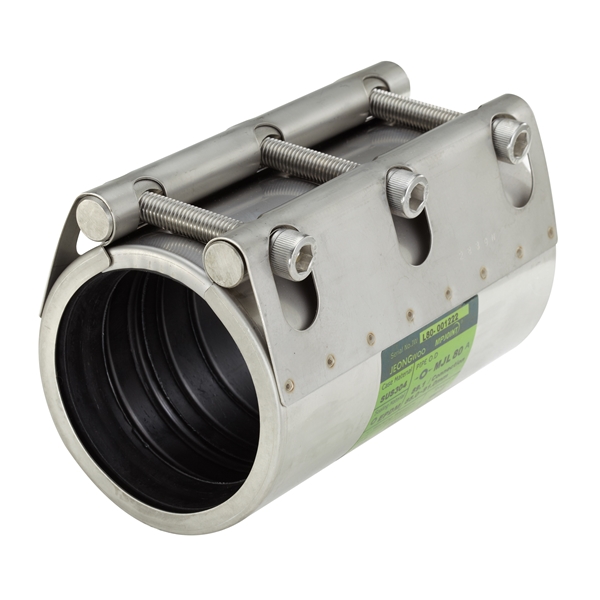

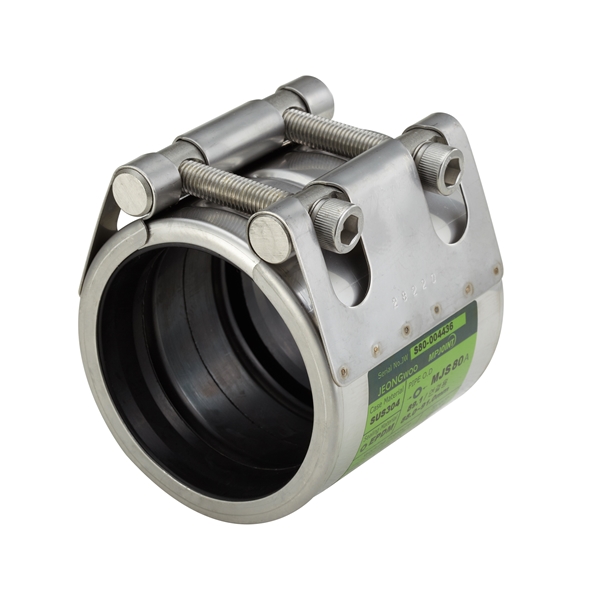

■ MJS 15A~600A / MJL 20A~600A

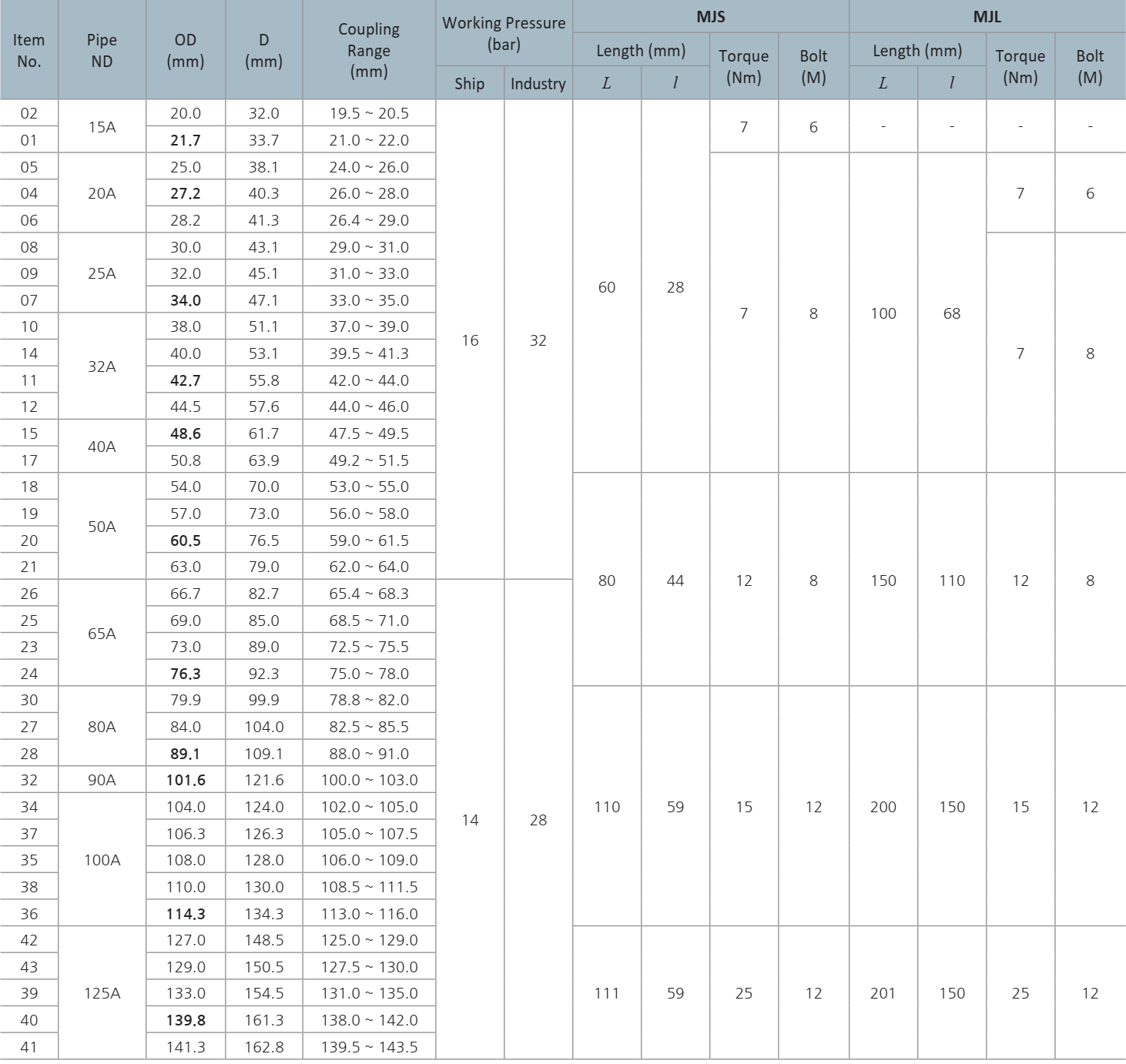

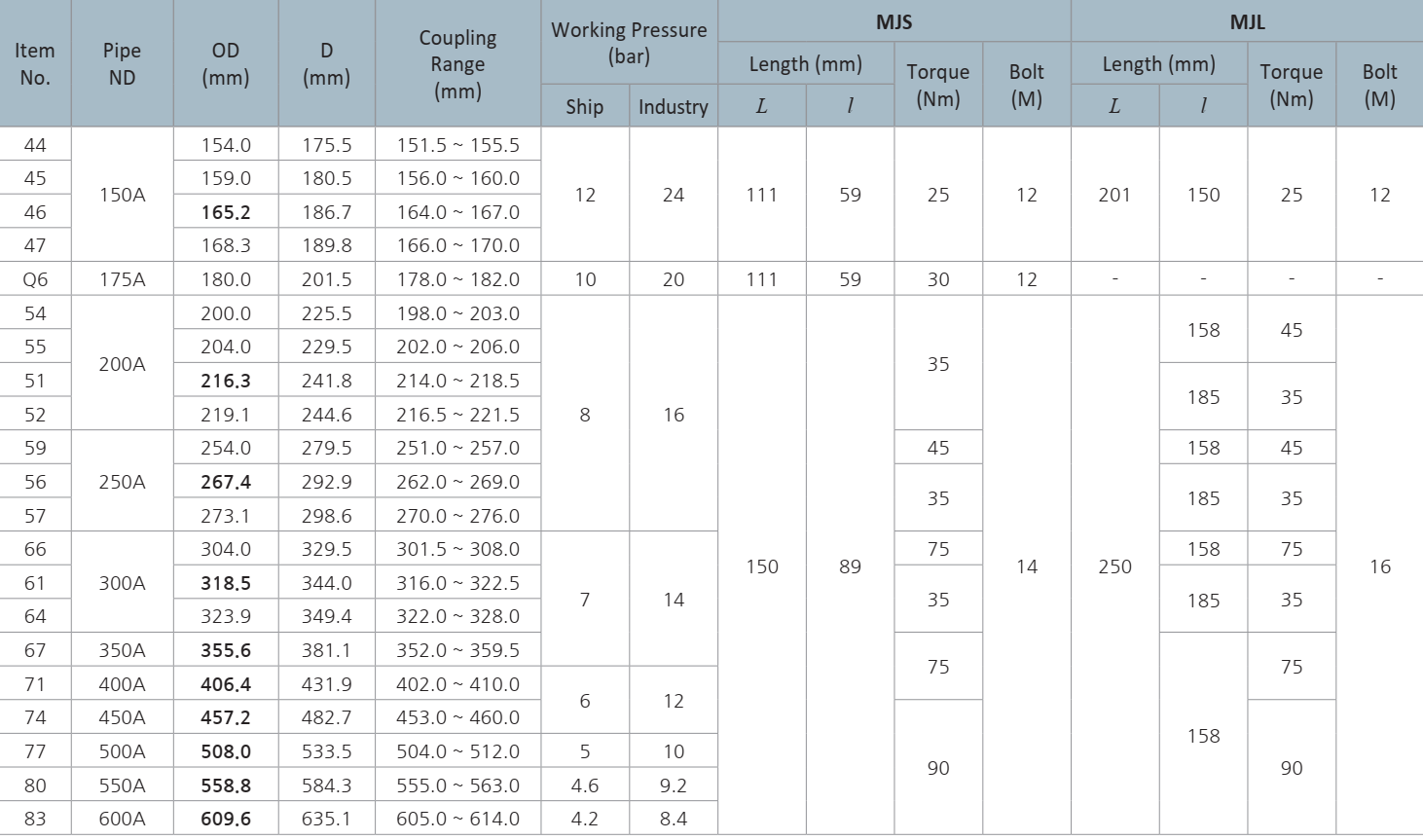

Specification of MJS / MJL
| Max. axial movement | |
|---|---|
| 15A~175A |
5mm |
|
200A~500A |
10mm |
|
550A~ |
15mm |
■ MJSF / MJSFL 65A~600A
MJSF and MJSFL are for higher pressure, thanks to thicker casing than MJS and MJL.
| ND | MJSF / MJSFL | MJS / MJL |
|---|---|---|
| 65A~125A | 16bar | 14bar |
|
150A |
16bar |
12bar |
|
200A |
12bar |
8bar |
|
250A |
10bar |
8bar |
|
300A~350A |
10bar |
7bar |
|
400A |
10bar |
6bar |
|
450A |
9.5bar |
6bar |
|
500A |
7bar |
5bar |
|
550A |
7bar |
4.6bar |
|
600A |
6bar |
4.2bar |
(working pressure for ship industry)
