MJD/MJDL双卡连接器
These are composed of two, three, or four separate pieces of casing and lock part at each end. They have better tightening and wider range of allowable pipe outside diameter. It is easy to install even at large diameter pipes. It is recommended to fix pipes.

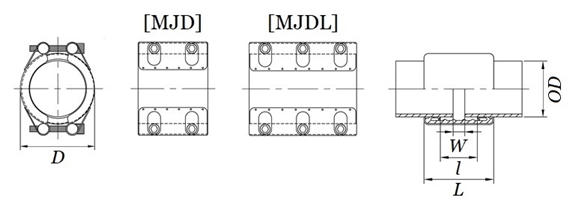

■ MJD 13A~1000A / MJDL 15A~1000A (2locks)

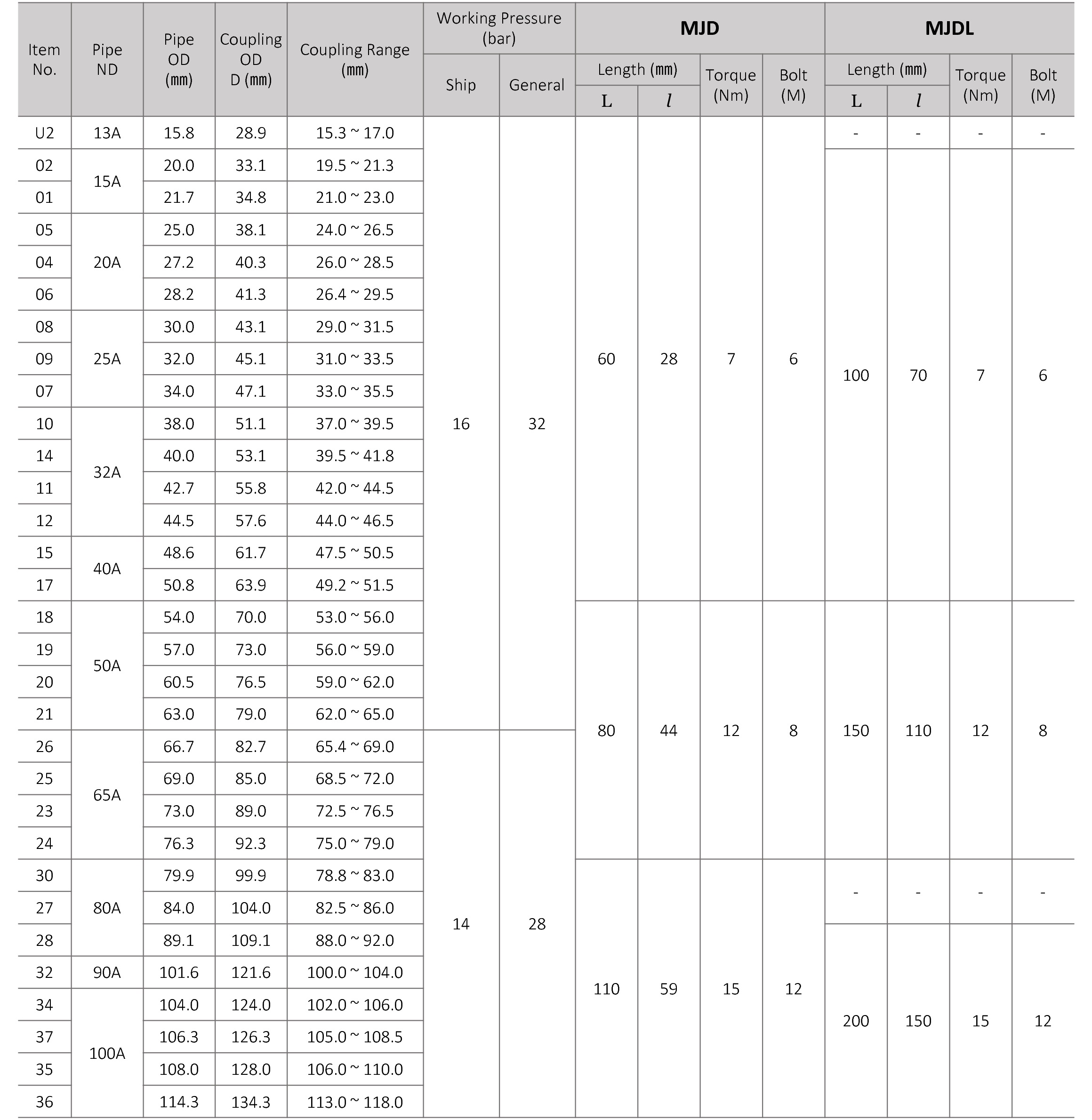

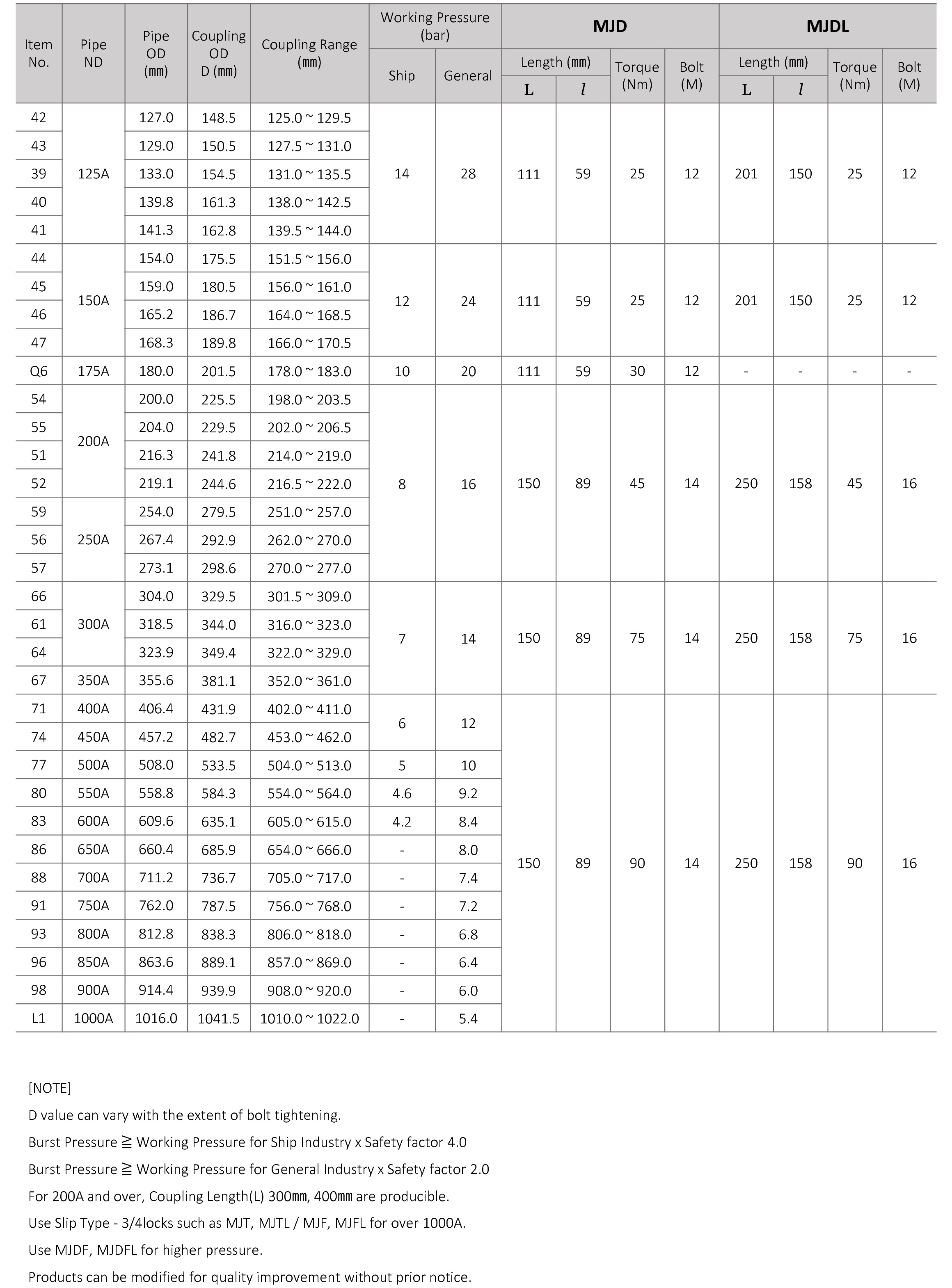

Specification of MJD / MJDL
■ MJDF / MJDFL 65A~1000A
| ND | MJDF / MJDFL | MJD / MJDL |
|---|---|---|
| 65A~125A | 32bar | 28bar |
|
150A |
32bar |
24bar |
|
200A |
24bar |
16bar |
|
250A |
20bar |
16bar |
|
300A~350A |
20bar |
14bar |
|
400A |
20bar |
12bar |
|
450A |
19bar |
12bar |
|
500A |
14bar |
10bar |
|
550A |
14bar |
9.2bar |
|
600A |
12bar |
8.4bar |
|
650A |
12bar |
8.0bar |
|
700A |
11bar |
7.4bar |
|
750A |
10.5bar |
7.2bar |
|
800A |
10.0bar |
6.8bar |
|
850A |
9.3bar |
6.4bar |
|
900A |
8.8bar |
6.0bar |
|
1000A |
8.0bar |
5.4bar |
(working pressure for general industry)

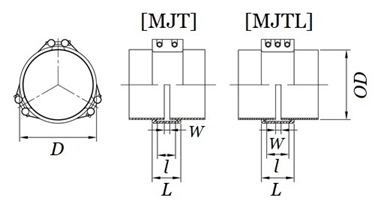

■ MJT / MJTL (3locks) 1100A~1500A

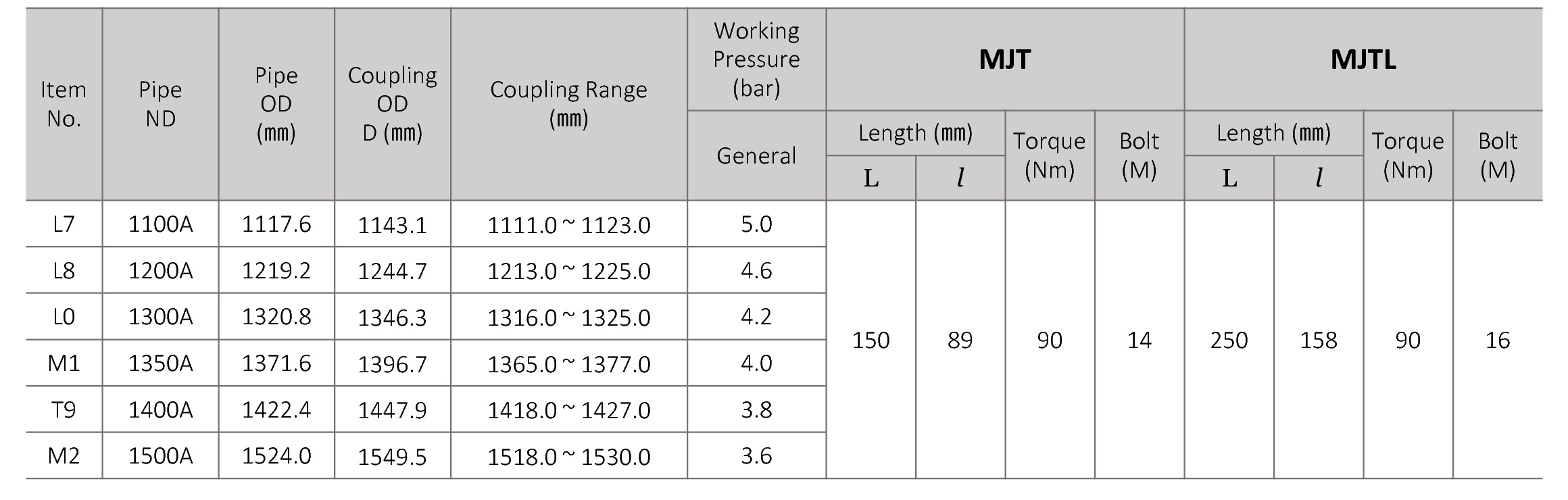

Specification of MJT / MJTL
■ MJTF / MJTFL 1100A~1500A
| ND | MJTF / MJTFL | MJT / MJTL |
|---|---|---|
| 1100A | 7.2bar | 5.0bar |
|
1200A |
6.8bar |
4.6bar |
|
1300A |
6.2bar |
4.2bar |
|
1350A |
6.0bar |
4.0bar |
|
1400A |
5.8bar |
3.8bar |
|
1500A |
5.4bar |
3.6bar |
(working pressure for general industry.)

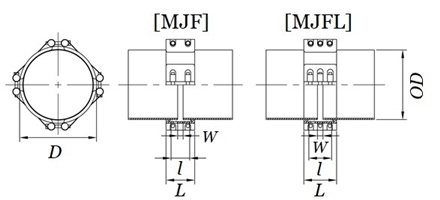

■ MJF / MJFL (4locks) 1600A~4000A

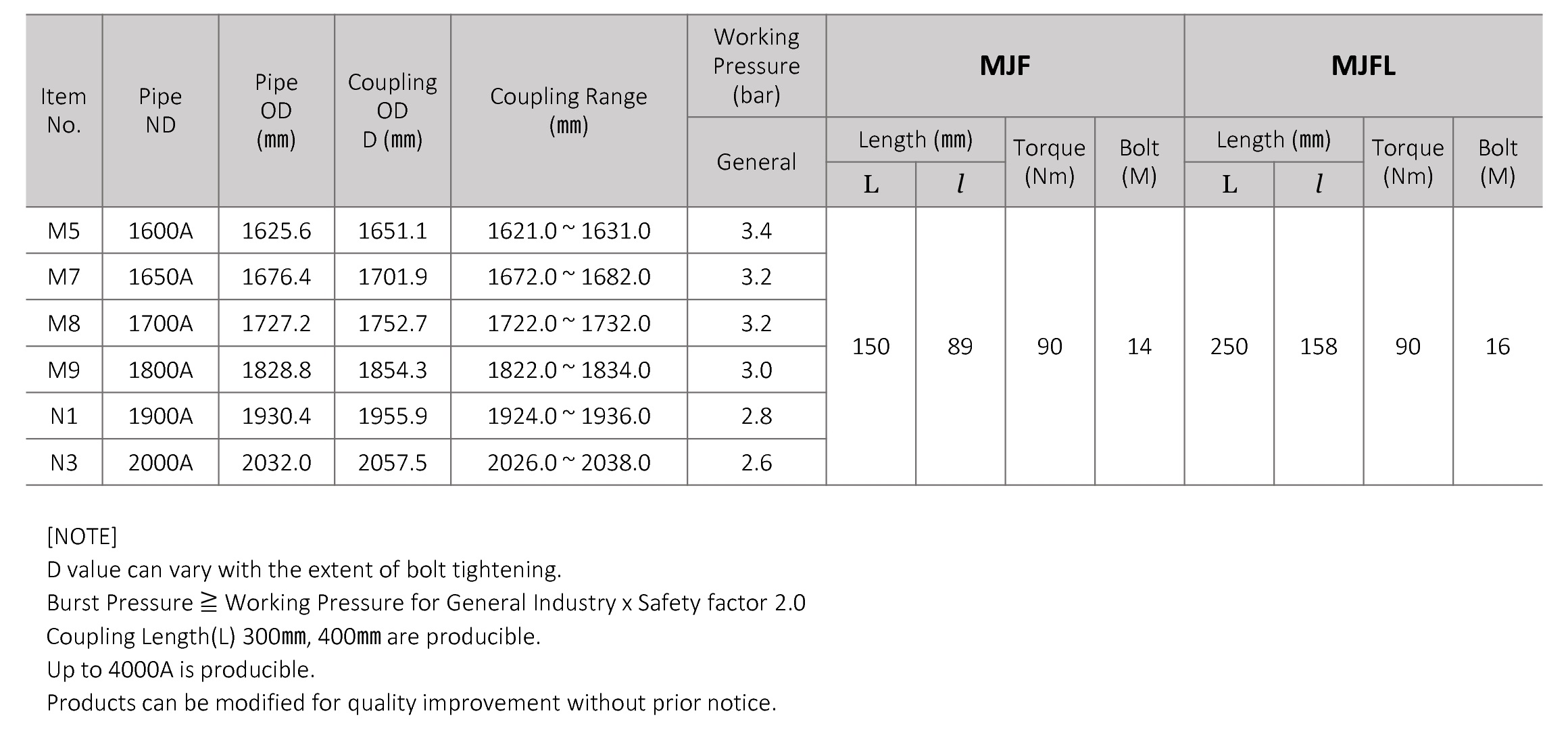

Specification of MJF / MJFL
■ MJFF / MJFFL 1600A~4000A
| ND | MJFF / MJFFL | MJF / MJFL |
|---|---|---|
| 1600A | 5.0bar | 3.4bar |
|
1650A |
4.8bar |
3.2bar |
|
1700A |
4.6bar |
3.2bar |
|
1800A |
4.4bar |
3bar |
|
1900A |
4.2bar |
2.8bar |
|
2000A |
4.0bar |
2.6bar |
(working pressure for general industry.)
