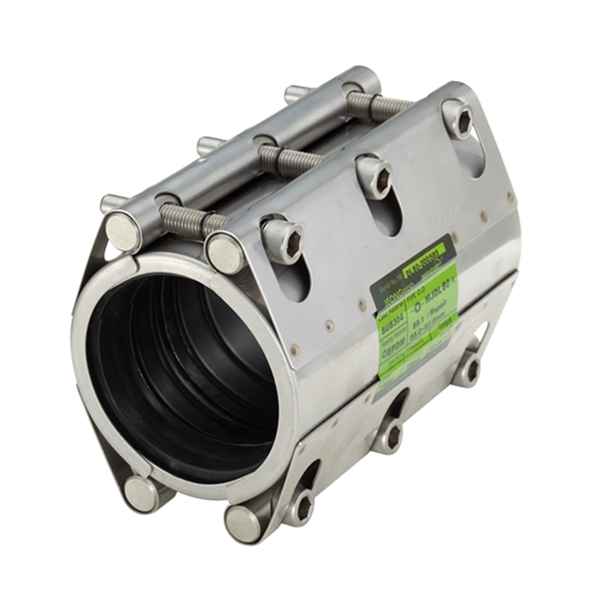

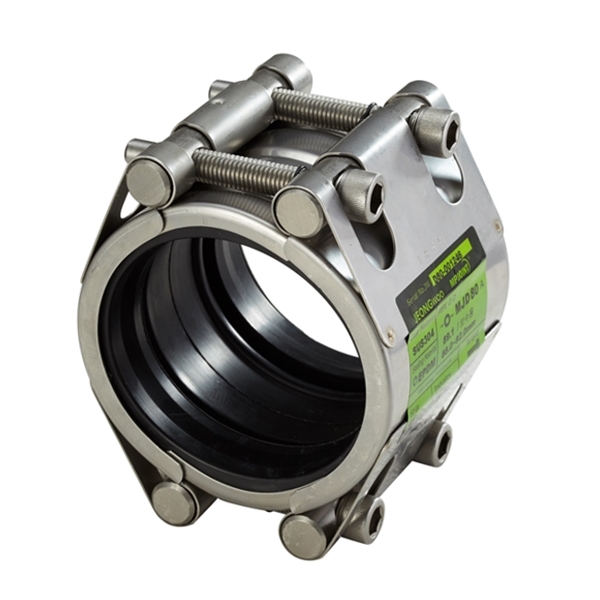

MJD/MJDL双卡修补器
These clamps are composed of two, three, or four separate pieces of casing and lock part at each ends. They have better tightening and wider range of allowable pipe OD. It is easy to install even at large diameter pipes. They are also used for new connection or partial replacement of pipeline with uncut rubber gasket.

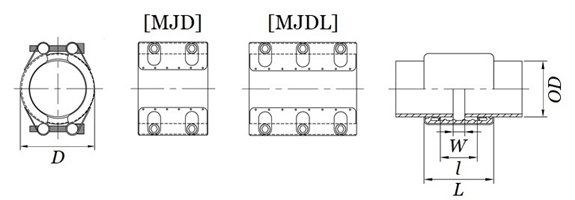

■ MJD 13A~1000A / MJDL 15A~1000A (2locks)

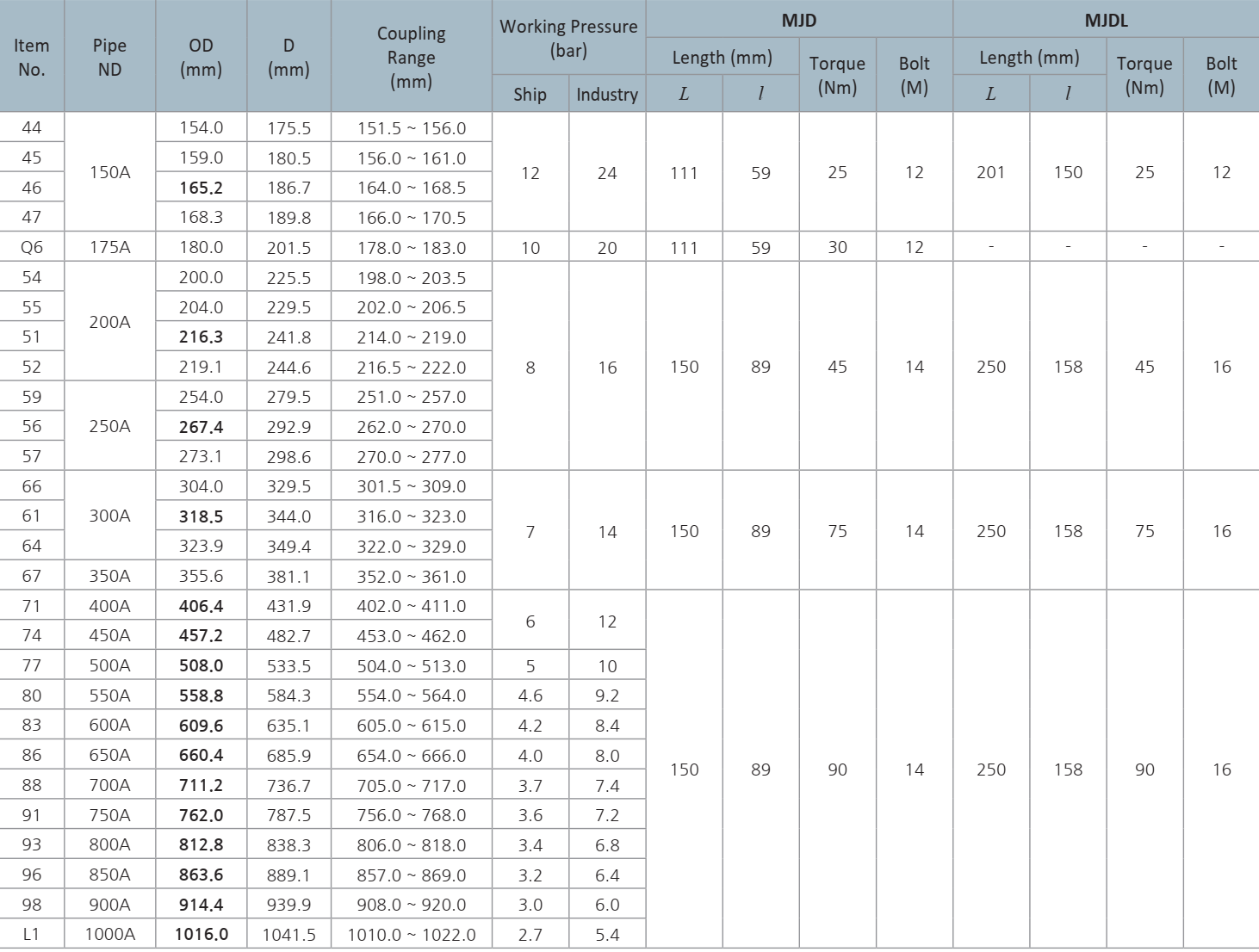

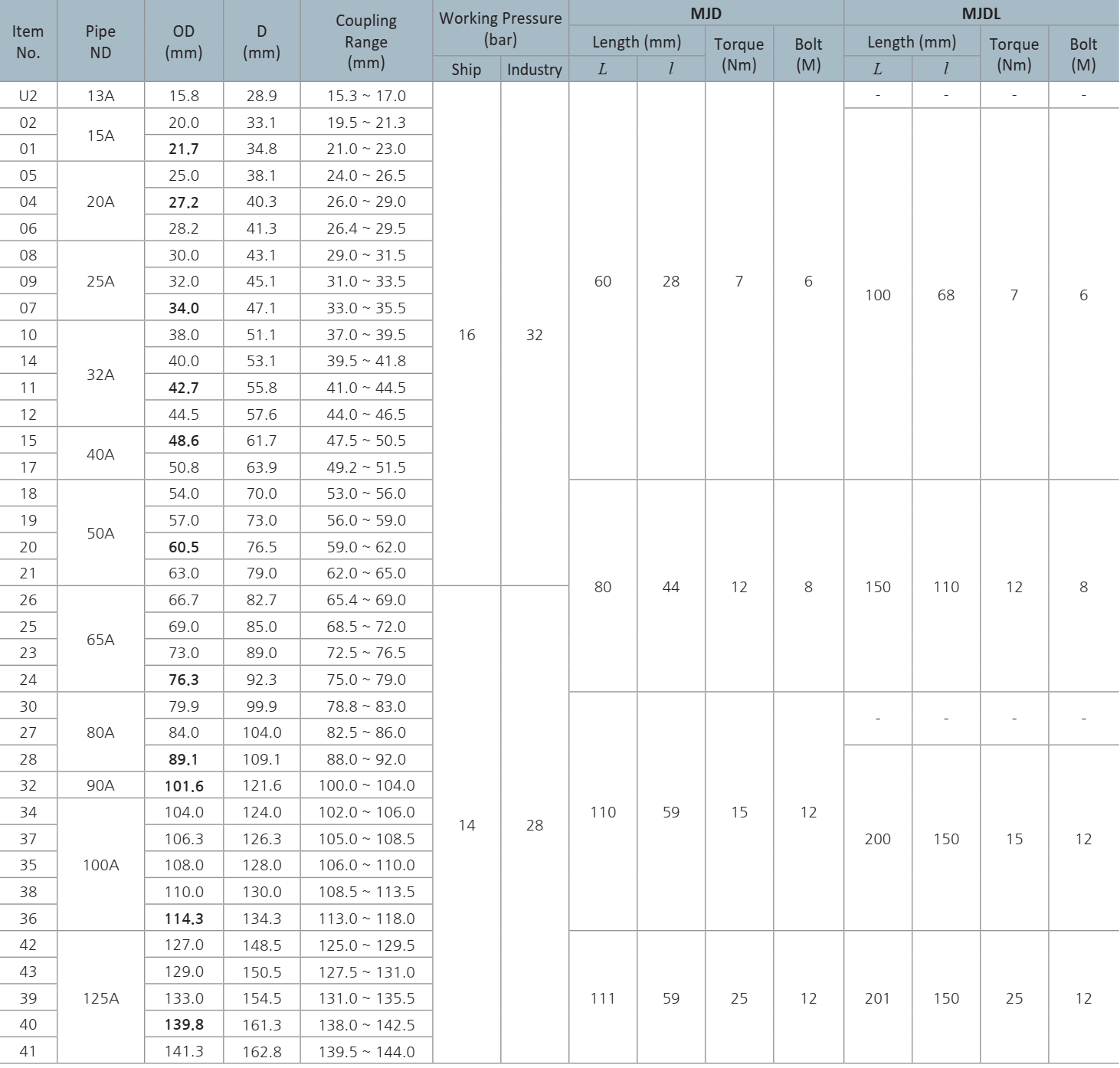

Specification of MJD / MJDL
■ MJDF / MJDFL 65A~1000A
| ND | MJDF / MJDFL | MJD / MJDL |
|---|---|---|
| 65A~125A | 32bar | 28bar |
|
150A |
32bar |
24bar |
|
200A |
24bar |
16bar |
|
250A |
20bar |
16bar |
|
300A~350A |
20bar |
14bar |
|
400A |
20bar |
12bar |
|
450A |
19bar |
12bar |
|
500A |
14bar |
10bar |
|
550A |
14bar |
9.2bar |
|
600A |
12bar |
8.4bar |
|
650A |
12bar |
8.0bar |
|
700A |
11bar |
7.4bar |
|
750A |
10.5bar |
7.2bar |
|
800A |
10.0bar |
6.8bar |
|
850A |
9.3bar |
6.4bar |
|
900A |
8.8bar |
6.0bar |
|
1000A |
8.0bar |
5.4bar |
(working pressure for general industry)

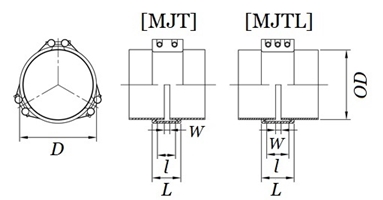

■ MJT / MJTL (3locks) 1100A~1500A

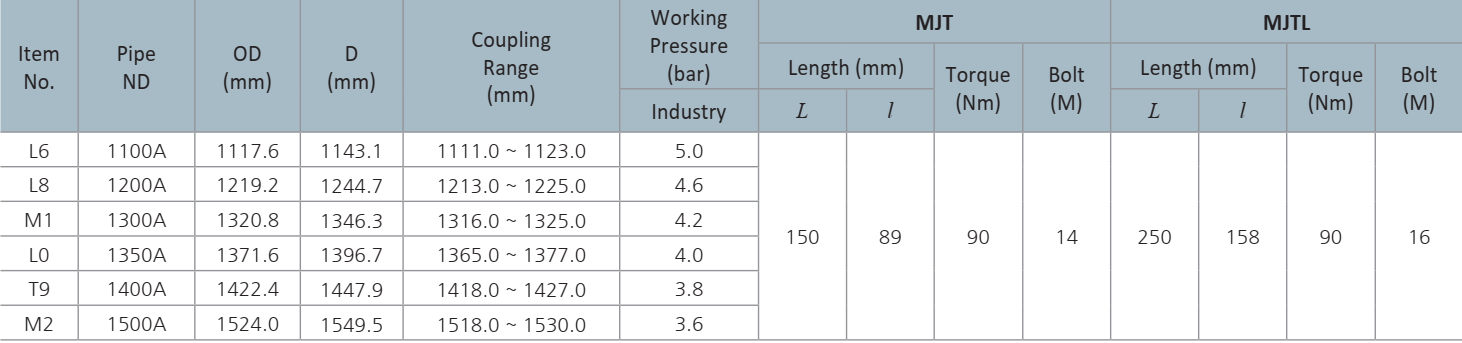

Specification of MJT / MJTL
■ MJTF / MJTFL 1100A~1500A
| ND | MJTF / MJTFL | MJT / MJTL |
|---|---|---|
|
1100A |
7.2bar |
5.0bar |
|
1200A |
6.8bar |
4.6bar |
|
1300A |
6.2bar |
4.2bar |
|
1350A |
6.0bar |
4.0bar |
|
1400A |
5.8bar |
3.8bar |
|
1500A |
5.4bar |
3.6bar |
(working pressure for general industry)

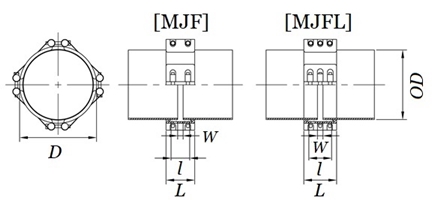

■ MJF / MJFL (4locks) 1600A~2000A

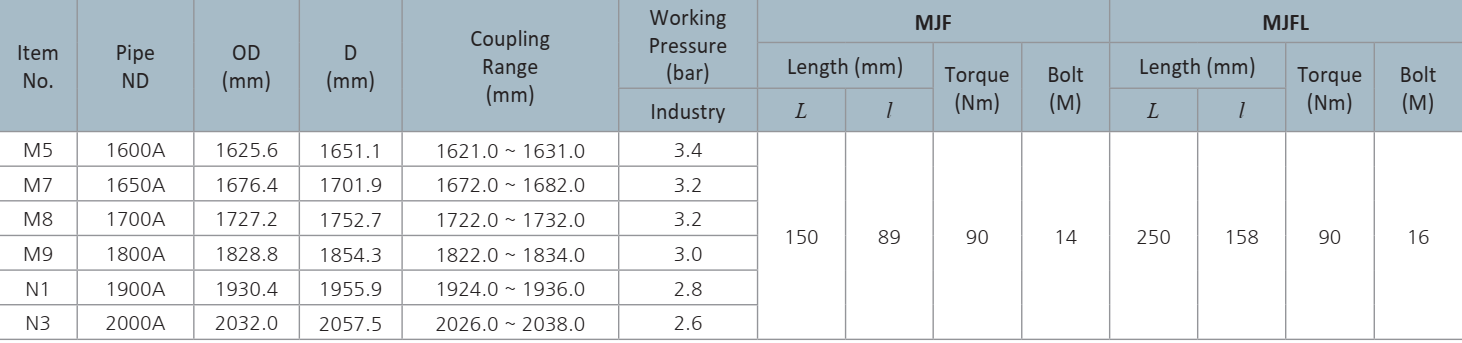

Specification of MJF / MJFL
■ MJFF / MJFFL 1600A~2000A
| ND | MJFF / MJFFL | MJF / MJFL |
|---|---|---|
|
1600A |
5.0bar |
3.4bar |
|
1650A |
4.8bar |
3.2bar |
|
1700A |
4.6bar |
3.2bar |
|
1800A |
4.4bar |
3.0bar |
|
1900A |
4.2bar |
2.8bar |
|
2000A |
4.0bar |
2.6bar |
(working pressure for general industry)
